ADVANTAGE
Easy changeover, Compact size
Widely applicable to various paste and different tube materials
Shaped sealing and elliptical tube loading
TECHNICAL SPECIFICATIONS
Production speed: The actual production speed depends on the size of the pipe diameter and the viscosity of the filling material.
| Hose diameter / mm | Filling amount / ml | Speed / minute | |
| 19 | 5 | 60 | 80 |
| 35 | 50 | 55/60 | 75/80 |
| 50 | 200 | 55 | 70 |
Energy supply：
| energy | Metal tube | Internal heating |
| Compressed air consumption (cubic / hour) | 5 | 56 |
| Compressed air pressure (bar) | 6 | 6 |
| Water (liters / hour) | / | 200 |
| Electricity (kW) | 1.5 | 5.3 |
ADAPT TO PRODUCT TYPE

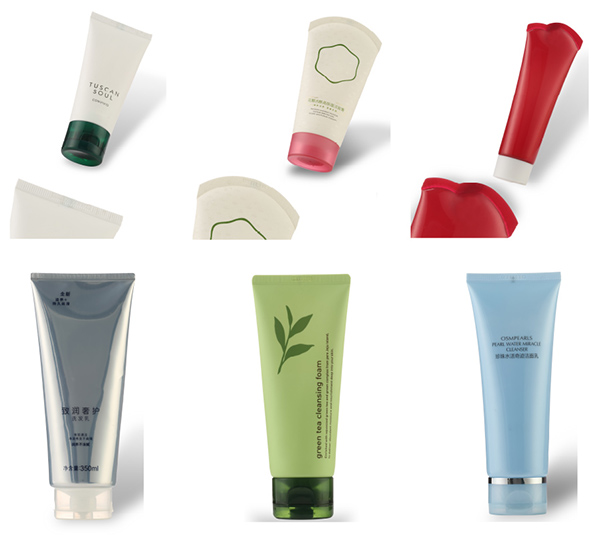

Plastic and Metal Tube：

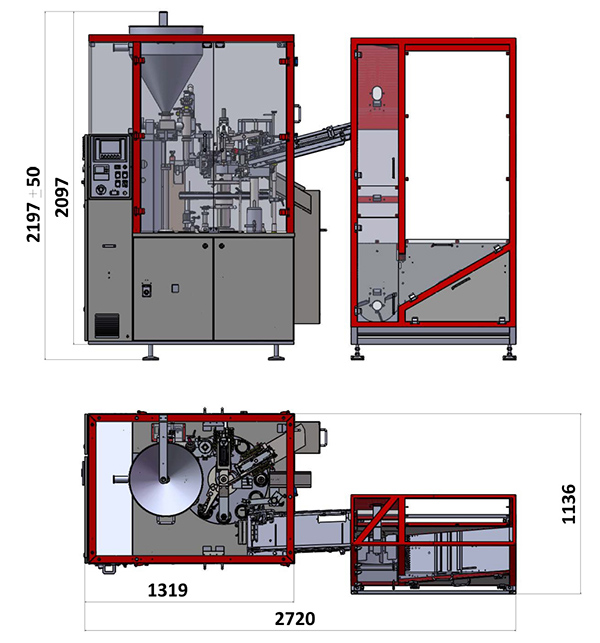

EQUIPMENT SIZE
Equipment size：

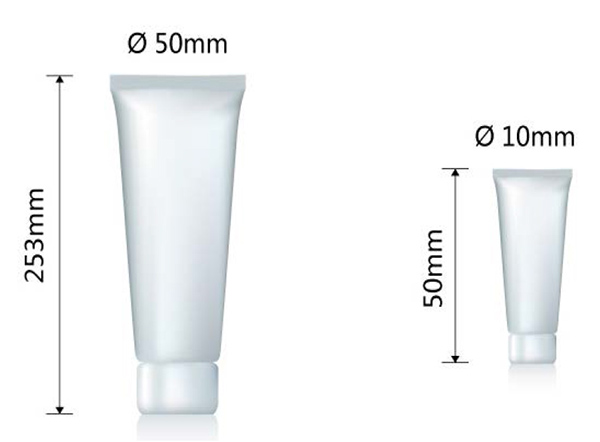

Tube size：
Diameter from 10mm to 50mm (up to 60mm, optional)
Tube length from 50mm to 253mm (including cap)
Suitable for all shapes of tube caps
